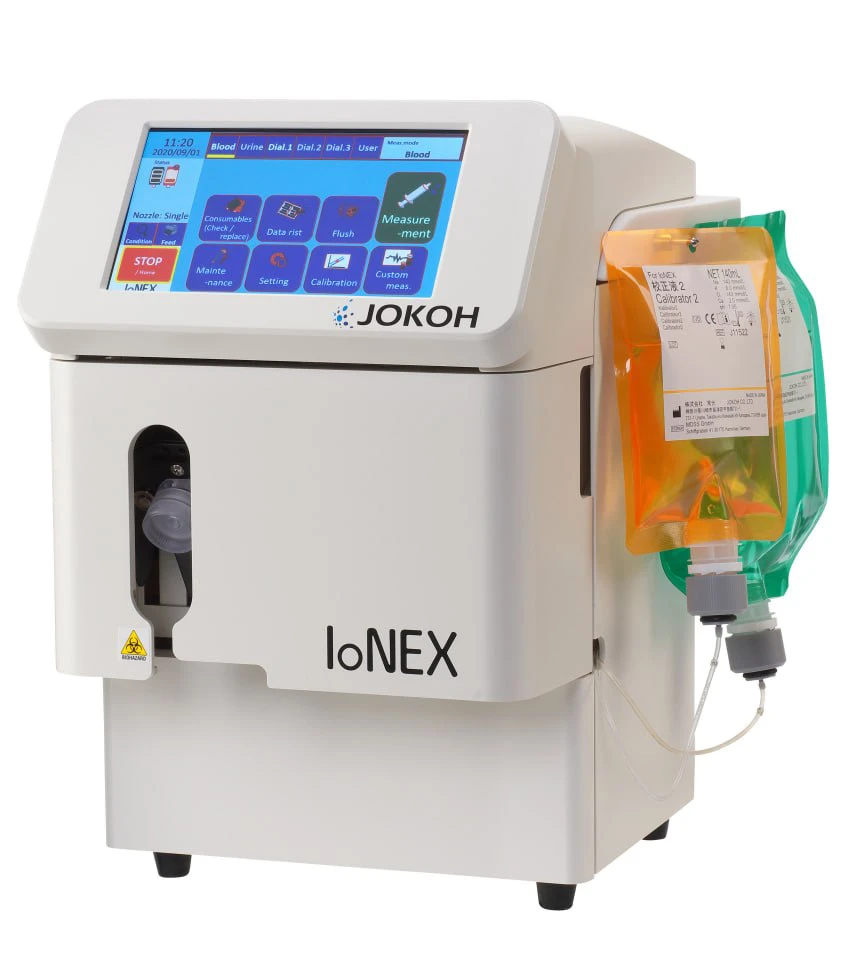

IoNEX

Sample
Whole Blood, Serum, Plasma (100μl), Diluted Urine (300μl)
Hemo-Dialysis Solution A (Acid Concentrates), Solution B
(Bicarbonate), Solution A+B balanced (300μl)
Parameters
Na⁺, K ⁺, Cl⁻, Ca² ⁺ , pH
Measurement Speed
35 sec./sample (Na⁺, K ⁺, Cl⁻, Ca² ⁺ ), 60 sec./sample (pH)
Accuracy
C.V. ≦ 0.5%
Measurement Method
Ion Selective Electrode
Calibration
2-point automatic calibration, interval adjustable
Storage
10,000 patients
Technical Data
Connection: RS232C, CSV output
Display: color TFT-LCD (resistance film type)
Power: AC 90-260V, 1.2-0.5 A, 47-63 Hz (AC adapter)
Size and Weight
27 x 34.5 x 36.5 cm, Approx. 8kg
